ZGS-630kVA Combined American-style Transformer Product Introduction

1. Product Overview

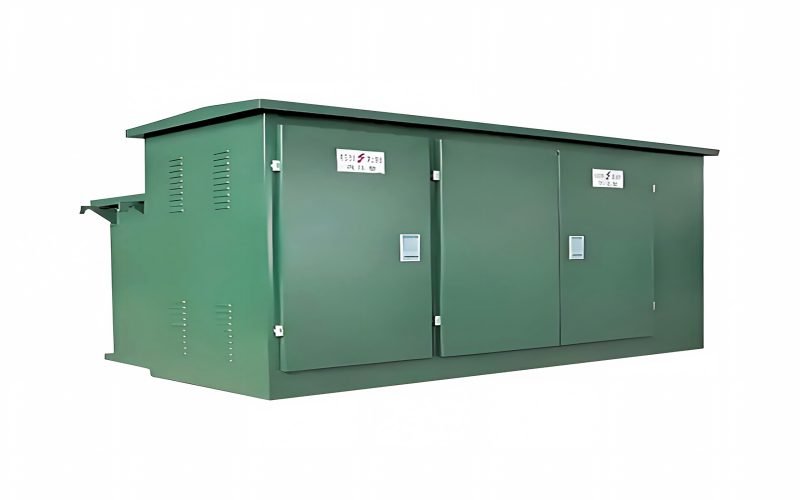

The ZGS-630kVA combined American-style transformer, also commonly known as pad-mounted box substation, is an integrated compact power distribution equipment widely adopted in urban and rural power grid systems. Different from traditional split-type transformer substations, this model integrates the core transformer body, high-voltage load switch, protective fuse, voltage tap regulator, low-voltage distribution cabinet and all auxiliary accessories into a fully sealed compact box structure. It adopts mature American-style power distribution design standards, featuring integrated factory pre-assembly and debugging, which eliminates the complicated on-site assembly and wiring work of conventional equipment.

Designed and manufactured strictly in accordance with national and international power industry standards, this 630kVA transformer is optimized for medium and low voltage power distribution scenarios. It delivers stable power conversion performance, strong environmental adaptability and low operational failure rate. The overall structure is compact and neat with small floor space, perfectly solving the problem of large occupation area and complicated construction of traditional power distribution equipment, and it has become the preferred power supply equipment for urban grid renovation, residential communities and industrial supporting projects.

2. Core Product Parameters

The following are the standard technical parameters of ZGS-630kVA combined American-style transformer, which are tested and verified by professional institutions, supporting long-term stable full-load operation:

3. Product Core Features

3.1 Compact Integrated Structure, Space-saving

This American-style combined transformer adopts an integrated box-type design, with all functional components highly centralized. Its overall volume is only 1/3 to 1/5 of the European-style transformer substation with the same capacity. It occupies a small ground area and will not block the visual field of the surrounding environment. It can be directly installed on outdoor ground without building special transformer room and supporting civil engineering facilities, greatly saving project construction land and overall investment cost.

3.2 Low Energy Consumption and Low Noise, Energy-saving and Eco-friendly

The transformer core is made of high-quality silicon steel sheets with step-lap processing technology, which effectively reduces no-load loss, load loss and operating noise. The optimized winding structure and heat dissipation design ensure low temperature rise during long-term full-load operation. Compared with traditional ordinary transformers, it has more stable energy-saving effect, lower operating noise that will not interfere with the surrounding living and production environment, and fully meets urban environmental protection power supply standards.

3.3 Full Insulation and Full Sealing, High Operational Safety

The whole machine adopts a fully sealed and fully insulated structure design, with internal components completely isolated from the external environment. The box body has good waterproof, dustproof, anti-corrosion and anti-oxidation performance, which can effectively prevent rainwater, dust and foreign matter from entering the equipment. Equipped with high-performance elbow-type lightning arrester and high-sensitivity protective fuse, it has strong lightning protection and short-circuit protection capabilities. The wiring terminals are fully insulated, which can effectively avoid electric leakage and accidental electric shock risks, ensuring personal safety and stable equipment operation.

3.4 Strong Adaptability and Stable Operation

The equipment is specially optimized for complex outdoor working conditions, supporting normal operation in high temperature, low temperature, humid and dusty environments. It has strong overload resistance and sudden short-circuit impact resistance, with stable output voltage and no neutral point drift. The Dyn11 wiring group ensures good three-phase voltage balance, effectively improving power supply quality and avoiding voltage fluctuation affecting terminal electrical equipment.

3.5 Simple Installation and Flexible Wiring

The product is fully assembled and debugged before leaving the factory. Users only need to complete on-site foundation fixing and cable connection to put it into operation, which greatly shortens the construction cycle. It supports flexible wiring modes, compatible with terminal power supply and loop power supply systems, and can adjust the wiring scheme according to on-site power distribution needs, with strong on-site adaptability.

4. Application Scenarios

With its compact structure, safe operation and wide environmental adaptability, the ZGS-630kVA combined American-style transformer is widely used in various civil and industrial power distribution scenarios, and is the mainstream supporting equipment for medium and low voltage power distribution systems:

• Urban and Rural Power Grid Renovation: It is the core equipment for old urban community power grid upgrading and rural power grid reconstruction, solving the problems of insufficient power supply capacity and aging equipment of old power grids.

• Residential and Commercial Communities: Suitable for high-rise residential areas, commercial plazas, office buildings and other places with high power demand and strict environmental and space requirements, providing stable daily power supply for residents and commercial operations.

• Industrial Park and Factory Power Supply: Adapt to the continuous power supply demand of small and medium-sized factories, industrial parks, supporting normal operation of production equipment and ensuring stable industrial power consumption.

• Public Infrastructure: Widely used in schools, hospitals, airports, railway stations, parks and other public facilities, with safe and low-noise operation that does not affect public environment and daily operation.

• Outdoor Temporary and Special Scenarios: Applicable to construction site temporary power consumption, highway and railway supporting power distribution, oil field and dock outdoor power supply and other scenarios, adapting to complex outdoor working conditions.

5. Product Maintenance and After-sales Service

5.1 Daily Maintenance Guidelines

This series of transformers is designed with low maintenance performance, realizing maintenance-free operation in conventional working conditions. To extend the service life and ensure long-term stable operation, regular routine inspection is recommended:

• Check the tightness of the box body regularly every quarter to ensure no oil leakage, water ingress and dust accumulation inside the equipment, and keep the box body surface clean and intact.

• Observe the operating temperature and noise of the equipment during daily operation. If there is abnormal noise or excessive temperature rise, stop operation in time for inspection.

• Check the connection status of high and low voltage cable terminals regularly to avoid loose wiring and poor contact, and ensure the insulation layer is intact without aging and damage.

• Carry out oil quality inspection every 2-3 years for long-term operating equipment, and replace the insulating oil if deterioration is found; check the performance of internal protective devices to ensure sensitive and effective protection functions.

• Clean the dust and sundries around the equipment regularly to ensure unobstructed heat dissipation and avoid long-term sun exposure and water accumulation soaking the foundation.

5.2 After-sales Service Guarantee

We provide comprehensive and reliable after-sales support for all ZGS-630kVA combined American-style transformers, focusing on solving user equipment operation problems efficiently:

• Warranty Service: The whole machine enjoys a 2-year free warranty, and the core transformer body enjoys a 5-year quality warranty. During the warranty period, any quality failure caused by manufacturing process and material problems will be repaired and replaced free of charge.

• Technical Support: Provide 24-hour online technical consultation service, respond to user operation consultation and fault diagnosis demands in real time, and guide users to complete daily maintenance and simple fault elimination remotely.

• On-site Service: For equipment faults that cannot be solved remotely, arrange professional after-sales engineers to arrive at the site within the shortest time according to the regional location to complete fault maintenance and equipment debugging.

• Lifelong After-sales Service: Provide lifelong paid maintenance and component replacement services after the warranty period, and regularly push equipment maintenance suggestions and power distribution operation optimization schemes for users.

• Customized Support: Provide free installation guidance and commissioning technical support for bulk order customers, and support personalized parameter adjustment and scheme customization according to user on-site working conditions.
