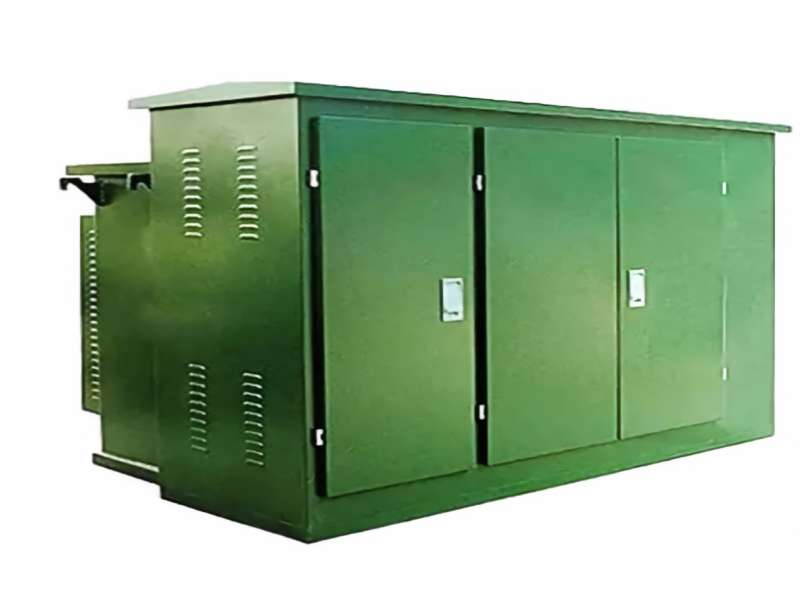

American Style Pad Mounted Transformer

1. Product Overview

The American style pad mounted transformer is an integrated compact power distribution device designed and manufactured in line with ANSI, IEEE and IEC international standards, widely adopted in North American power grids and global outdoor power distribution projects. Different from traditional split-type substations, this product integrates high-voltage switchgear, transformer core winding, low-voltage distribution system and protection devices into a fully sealed compact enclosure, realizing an all-in-one modular design.

Factory pre-assembly and full commissioning are completed before delivery, which greatly simplifies on-site construction work. It only needs foundation fixing and simple cable connection after arriving at the site, effectively shortening the project cycle. With outdoor weather resistance, high safety and stable load adaptability, it serves as core voltage conversion and power distribution equipment for outdoor commercial, residential, industrial and new energy power supply scenarios.

2. Core Product Parameters

The following are mainstream standard parameters of American style pad mounted transformers, covering common industrial and civil power supply specifications, supporting customized configuration for special project requirements:

3. Product Core Features

3.1 Integrated Compact Structure

This transformer adopts a highly integrated box-type structure, combining high-voltage load switch, fuse protection, transformer body and low-voltage outlet unit as a whole. It requires no independent power distribution room, covering only a small ground area, which effectively saves land occupation and infrastructure investment for users. The overall layout is compact and regular, adapting to various outdoor installation environments.

3.2 Excellent Safety Performance

Equipped with UL 1551 certified high-voltage switch and dual protection system of plug-in dual-sensitive fuse and current-limiting backup fuse, the product can quickly respond to over-temperature, over-current and short-circuit faults to avoid winding burnout and equipment explosion. The fully sealed explosion-proof oil tank structure isolates internal components from external environment, preventing leakage and electric leakage risks. All live parts are completely enclosed to avoid accidental contact injuries, meeting strict outdoor power safety standards.

3.3 Strong Environmental Adaptability

The whole cabinet is made of high-strength corrosion-resistant steel plate with anti-rust and anti-corrosion spray treatment, which can resist wind, rain, snow and ultraviolet erosion. It can operate stably in extreme temperature environments from -40℃ to +45℃, and has good seismic and wind resistance performance. The fully sealed structure effectively blocks dust, moisture and foreign matter from entering the interior, ensuring stable operation in humid, dusty and coastal salt-fog areas.

3.4 Outstanding Load Resistance & Stable Operation

The amorphous alloy or high-quality silicon steel core is adopted to effectively reduce no-load loss and operating noise, with low energy consumption and high power supply efficiency. The product supports 2 times rated overload operation for 2 hours and 1.6 times rated overload operation for 7 hours without affecting service life, which can well cope with fluctuating loads of new energy power generation and peak power consumption of industrial equipment. The internal insulation system is stable and reliable, with long-term continuous operation performance without failure.

3.5 Low Maintenance & Cost-Effective

The fully welded sealed oil tank realizes maintenance-free operation during the whole service life, no need for regular oil replacement and internal cleaning. Modular component design supports quick disassembly and replacement of vulnerable parts, greatly reducing daily maintenance workload and later operation cost. Factory integrated debugging avoids on-site debugging errors, reducing project labor and time costs.

4. Application Scenarios

Thanks to its compact structure, high safety and strong environmental adaptability, American style pad mounted transformers are widely used in various outdoor power distribution scenarios, especially suitable for North American standard power grid systems:

• Residential Community Power Supply: Provide stable voltage conversion and power distribution for urban residential quarters, villa areas and community supporting facilities, adapting to daily household power consumption peaks.

• Commercial Facilities: Applicable to shopping malls, office parks, hotels, parking lots and other commercial places, meeting continuous and stable power demand of commercial electrical equipment.

• Industrial Parks: Serve small and medium-sized factories, industrial workshops and logistics parks, resist industrial load fluctuation, and ensure safe and stable industrial power supply.

• New Energy Projects: Matching photovoltaic power stations, wind power generation and energy storage projects, adapt to unstable new energy power output and complete voltage step-down and grid-connected power distribution.

• Public Infrastructure: Widely used in street lighting, highway service areas, scenic spots, campus power distribution and other public outdoor power supply scenarios.

5. Product Maintenance & After-Sales Service

5.1 Daily Maintenance Guidelines

This product is designed for low maintenance, and only simple regular inspection is required in daily operation. It is recommended to check the external cabinet integrity, seal tightness and cable connection status every quarter to ensure no damage, rust or looseness. Conduct an annual comprehensive inspection of internal switch status, oil level and insulation performance. Keep the installation foundation flat and unobstructed, avoid long-term water accumulation around the equipment. It is forbidden to open the sealed cabinet privately during operation to prevent dust and moisture from entering.

5.2 Fault Handling Instructions

In case of abnormal noise, overheating or tripping failure during operation, cut off the power supply immediately and stop operation. Check whether there is external short circuit, overload or cable damage. For internal component failure and fuse action problems, contact professional after-sales personnel for replacement and maintenance, do not disassemble and repair by yourself to avoid safety accidents.

5.3 After-Sales Service Guarantee

We provide one-stop professional after-sales support for all pad mounted transformers. The whole machine enjoys a 3-year warranty, and core components such as transformer core and switchgear enjoy a 5-year warranty. We provide lifelong technical consultation and maintenance guidance services. Professional engineers support remote fault diagnosis and on-site maintenance services for overseas projects. We have complete spare parts supply system to ensure fast replacement of vulnerable parts and minimize equipment downtime. Meanwhile, we provide free product installation and operation training to help customers standardize equipment use and management.
