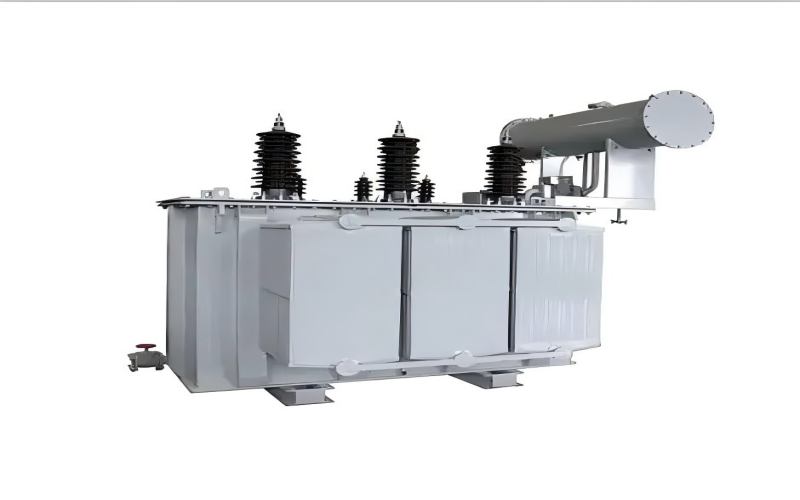

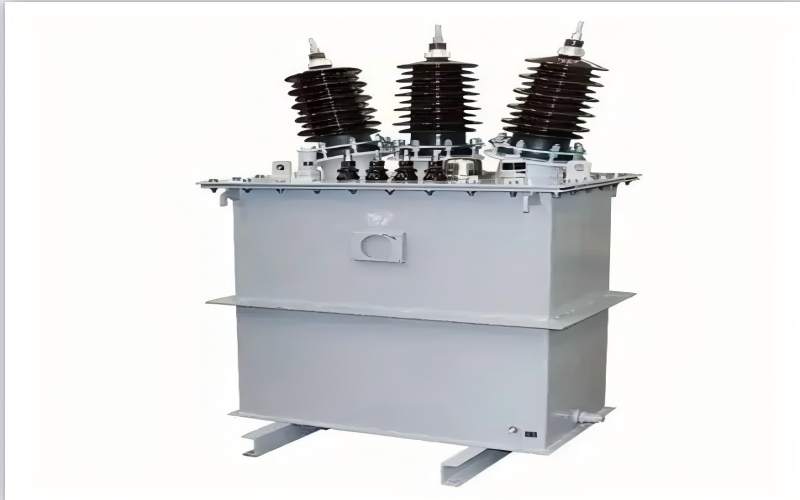

S11‑Series 10 kV‑35 kV Class Low‑Loss Off‑Circuit Tap‑Changer Transformer Product Introduction

1. Product Overview

The S11-series 10kV-35kV low-loss off-circuit tap-changer transformer is a mature, field-proven oil-immersed power distribution transformer optimized for medium-voltage power grids. Differing from ordinary regulating transformers, this model adopts an off-circuit (no-excitation) tap-changing design, which means voltage adjustment can only be completed after full power cutoff, effectively avoiding switching arcing and ensuring stable and safe voltage regulation operation.

Manufactured with high-grade cold-rolled grain-oriented silicon steel sheets and oxygen-free copper windings, the entire series achieves substantially reduced no-load and load losses compared with traditional S7 and S9 models. It features compact structure, low operating noise, strong short-circuit resistance and excellent environmental adaptability. Widely deployed in industrial and commercial power distribution, urban and rural grid renovation, and industrial park power supply scenarios, this transformer has become the mainstream energy-saving and reliable power distribution equipment in medium-voltage grid systems.

2. Core Product Parameters

The S11 series covers complete capacity and voltage specifications to meet conventional 10kV and 35kV power distribution demands. Key standardized technical parameters are listed in the table below:

3. Product Core Features

3.1 Outstanding Energy-Saving Performance

The transformer core is made of high-quality cold-rolled grain-oriented silicon steel sheets, with precision shearing and fully oblique lap joint technology, which minimizes magnetic flux leakage and iron loss. The no-load loss is significantly reduced by nearly 30% compared with old-generation S7 transformers, and no-load current is greatly decreased. Long-term grid operation can effectively reduce power consumption loss, bringing obvious energy-saving and economic benefits for power enterprises and industrial users.

3.2 Reliable Off-Circuit Voltage Regulation

Equipped with a high-stability off-circuit tap changer, the equipment supports manual voltage adjustment within the standard range after power outage. The tap changer has simple structure, low failure rate and strong anti-interference ability. Unlike on-load tap changers, it has no electric wear and arcing problems during operation, ensuring long-term stable voltage regulation and reducing hidden dangers of insulation aging caused by switching faults.

3.3 Superior Structural and Mechanical Performance

Both high and low voltage windings adopt oxygen-free copper wires with high conductivity and low resistivity. The low-voltage winding adopts double-layer cylindrical structure, and the high-voltage winding adopts multi-layer cylindrical structure; models of 1000kVA and above can be equipped with foil winding structure, which greatly improves winding compactness and short-circuit resistance. The overall body is firmly fixed with optimized insulation layout, which can withstand severe short-circuit impact and mechanical vibration without deformation.

3.4 Low Noise and High Environmental Adaptability

Through core vibration optimization and overall damping design, the operating noise of the whole machine is effectively controlled, meeting urban and residential area noise standards. The fully sealed oil tank structure prevents moisture and dust from entering, avoids insulating oil deterioration, and can operate stably in high-temperature, high-humidity and slightly corrosive outdoor environments, with strong weather resistance.

3.6 Low Operation and Maintenance Cost

The product has a stable overall structure and few vulnerable parts. The off-circuit tap changer is maintenance-free for a long time, and the sealed oil tank reduces the frequency of oil detection and replacement. Daily operation only needs routine inspection, which greatly reduces the later operation and maintenance investment of users.

4. Application Scenarios

Thanks to its stable performance, strong adaptability and cost-effective advantages, the S11-series 10kV-35kV low-loss off-circuit tap-changer transformer is widely used in various medium-voltage power distribution scenarios with fixed voltage regulation requirements and no frequent switching demand:

• Urban and Rural Power Grid Renovation: Used for 10kV/35kV distribution network terminal power supply, solving the problem of regional voltage deviation and improving grid power supply quality and stability.

• Industrial Park Power Supply: Suitable for factory centralized power supply in manufacturing parks, chemical parks and processing zones, adapting to long-term stable load operation of industrial equipment.

• Commercial and Civil Facilities: Applied to shopping malls, office buildings, residential communities, schools and hospitals, meeting the low-noise, safe and stable power supply requirements of public buildings.

• Infrastructure Engineering: Matching power supply systems for highways, railways, water conservancy projects and new energy supporting facilities, adapting to outdoor complex operating environments.

• Mining and Rural Special Scenarios: Suitable for rural scattered power supply and mining peripheral distribution networks, with strong anti-interference and durable performance.

5. Product Daily Maintenance

This series of transformers is designed with high durability and low maintenance, but standardized daily inspection and maintenance can effectively extend service life and avoid sudden faults. The core maintenance guidelines are as follows:

5.1 Routine Regular Inspection

Conduct visual inspection every 3 months to check the transformer oil level through the oil level gauge, confirm no oil seepage or leakage at welding seams, gaskets and pipe joints. Check whether the shell, casing and wiring terminals are clean and free of dust accumulation, cracking and discharge traces. Observe the pressure gauge reading to ensure it is within the normal operating range.

5.2 Regular Performance Detection

Carry out infrared temperature measurement inspection once a year during peak load periods to detect local overheating of windings, terminals and cooling parts in advance. Conduct oil quality analysis every 2-3 years to check the insulation performance and water content of transformer oil, and replace deteriorated insulating oil in time. For transformers with frequent voltage regulation operations, check the contact condition of the off-circuit tap changer after power outage every year to ensure reliable contact.

5.3 Daily Operation Specifications

Voltage regulation operation must be carried out under complete power-off state, and power transmission is strictly prohibited during adjustment. After each tap adjustment, confirm the gear position is locked in place. Avoid long-term overload operation of the equipment, and control the operating load within the rated range. Clean the surrounding sundries regularly to ensure smooth heat dissipation and avoid sun exposure and waterlogging for a long time.

6. After-Sales Service Guarantee

We provide full-cycle professional after-sales support for all S11-series transformer products, with a user-oriented service system to ensure stable and reliable equipment operation:

• Warranty Service: The whole machine enjoys a 3-year free warranty, and the core iron core and winding components enjoy a 5-year quality guarantee. During the warranty period, any quality failure caused by manufacturing process and material problems will be repaired and replaced free of charge.

• Technical Support: Provide 24/7 online technical consultation, respond to user operation, maintenance and fault consultation at any time, and deliver professional technical guidance remotely.

• On-Site Service: For on-site equipment faults that cannot be solved remotely, arrange professional after-sales engineers to arrive at the site for maintenance and debugging within the fastest time according to regional distance.

• Spare Parts Supply: Long-term reserve of original factory spare parts such as tap changers, casings and sealing accessories to ensure fast replacement and maintenance and shorten equipment downtime.

• Customized Service: Support parameter optimization and structural customization according to user's actual grid environment and load demand, and provide targeted power distribution solution matching services.

• Regular Return Visit: Take the initiative to conduct regular return visits to users, provide free operation guidance and maintenance suggestions, and help users standardize equipment management.
