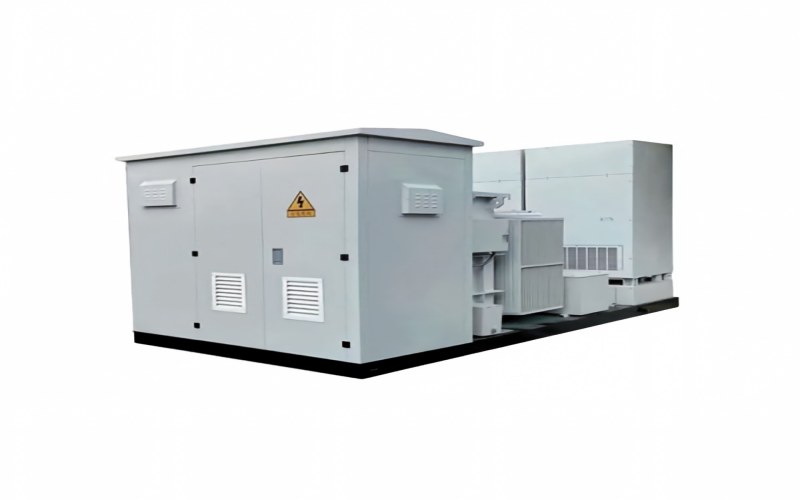

American Style Energy Storage Converter and Booster Integrated Machine

1. Product Introduction

The American style energy storage converter and booster integrated machine is a compact, all-in-one power conversion and voltage boosting solution tailor-made for North American power grid standards and on-site energy storage project demands. Different from traditional split-type converter and booster equipment, this product integrates core functions including DC/AC power conversion, voltage boosting, grid connection detection, energy management and safety protection into a single cabinet, eliminating the need for redundant intermediate connecting equipment and complex on-site wiring.

Designed to adapt to the 120/240V split-phase grid and 480V three-phase grid specifications commonly used in the United States, it perfectly matches residential, commercial and small-to-medium utility-scale energy storage scenarios. Adopting mature three-level power electronic conversion technology and modular structural design, the equipment realizes bidirectional efficient energy flow, which can stably convert DC power from energy storage batteries and photovoltaic modules into grid-compliant AC power, and also complete grid power charging and battery energy scheduling. With optimized thermal dissipation structure and environmental adaptability design, it can operate stably in high temperature, high humidity and altitude-variable outdoor and indoor environments, meeting the long-term continuous operation requirements of American local energy storage projects.

2. Product Technical Parameters

The following core parameters are formulated in line with US electrical codes and actual project operation conditions, covering electrical performance, environmental adaptation and safety indicators:

3. Product Core Features

3.1 American Standard Grid Adaptability

This machine is fully optimized for US local grid specifications, supporting 60Hz frequency and mainstream split-phase/three-phase voltage output modes. It is equipped with professional grid adaptive algorithms, which can automatically identify grid fluctuations and complete seamless grid connection and off-grid switching. The built-in anti-islanding protection and grid fault self-detection functions fully meet UL and NEC standard requirements, effectively avoiding grid operation risks and ensuring safe and compliant grid-connected operation of energy storage systems.

3.2 High Integration and Simple Installation

Integrating converter, booster, grid connection switch and energy management module, the equipment cancels the traditional split layout structure. It reduces on-site installation space by more than 40% compared with separate equipment, and simplifies wiring and debugging processes. The whole machine adopts an integrated cabinet design with reserved standard wiring ports, which allows on-site workers to complete installation and commissioning efficiently without complex professional configuration, greatly saving project construction cycle and labor costs.

3.3 Efficient and Stable Operation Performance

Adopting advanced three-level power conversion technology, the product achieves a maximum conversion efficiency of 98.5%, with low energy loss during long-term operation. The intelligent temperature-controlled air cooling system can automatically adjust the heat dissipation speed according to the operating load and ambient temperature, ensuring full-power stable operation even in high-temperature environments up to 45℃. Meanwhile, it supports mixed use of new and old batteries and active battery balance management, effectively extending the overall service life of the battery pack.

3.4 Comprehensive Safety Protection Mechanism

The equipment is equipped with a full-range safety protection system, covering overvoltage, undervoltage, overcurrent, overload, short circuit, overheating and lightning surge protection. It also has zero/high voltage ride-through capability, which can cope with instantaneous grid voltage fluctuations and avoid equipment shutdown and power supply interruption. The IP54 high protection grade enables it to adapt to outdoor rainy, dusty and high-humidity harsh environments, with strong environmental resistance and operational stability.

3.5 Flexible Expansion and Intelligent Management

Supporting multi-machine parallel stacking and free capacity expansion, the equipment can flexibly match energy storage projects of different scales from residential small systems to commercial and industrial medium systems. Built-in intelligent energy management system can automatically optimize energy scheduling, prioritize photovoltaic self-consumption, realize peak shaving and valley filling, and effectively reduce user electricity costs. It supports remote data monitoring, operation parameter adjustment and fault alarm, facilitating real-time system operation management.

4. Application Scenarios

4.1 Residential Solar Energy Storage

It is the core supporting equipment for household solar energy storage systems in North America. It can store excess photovoltaic power generated during the day, supply power for household loads at night or during grid power outages, realize self-sufficiency of household electricity, and reduce dependence on municipal power grids. It perfectly adapts to household split-phase grid power demand and provides stable emergency backup power.

4.2 Commercial and Industrial Energy Storage

Suitable for small and medium-sized supermarkets, office buildings, factories and retail stores in the United States. By peak shaving and valley filling energy scheduling, it avoids high electricity costs during peak power consumption periods. It can also provide uninterrupted power backup for key equipment, prevent economic losses caused by sudden power outages, and improve the stability of enterprise power consumption.

4.3 Off-grid and Remote Power Supply Scenarios

Applicable to remote villas, pastoral areas, field operation bases and other off-grid areas without stable municipal power supply. Matching with photovoltaic modules and battery packs, it builds an independent off-grid energy storage power system to provide continuous and stable AC power supply for daily life and production equipment, realizing complete energy independence.

4.4 Small and Medium-Sized Utility Energy Storage Projects

It can be used for distributed grid energy storage and micro-grid system construction in American regional power grids. Through orderly energy storage and power discharge, it assists the power grid in peak regulation and frequency modulation, relieves grid operation pressure, and improves the absorption rate of new energy power such as photovoltaics.

5. Product Maintenance and After-Sales Service

5.1 Daily Maintenance Guidelines

The equipment adopts a modular maintenance design with low daily maintenance cost and simple operation. Users only need to regularly check the cleanliness of the equipment air inlet and outlet to avoid dust accumulation affecting heat dissipation; regularly observe the operating parameters and fault prompt information through the monitoring terminal to ensure no abnormal load operation. It is recommended to conduct a comprehensive inspection of internal wiring terminals, heat dissipation fans and protection devices every six months, and replace aging and damaged accessories in time. The whole machine has no vulnerable parts that need frequent replacement, which greatly reduces daily operation and maintenance workload.

5.2 Fault Handling Support

The equipment has a built-in intelligent fault self-diagnosis system, which can accurately locate fault causes and send alarm prompts in real time. For common minor faults such as parameter deviation and abnormal signal, users can complete reset and recovery through remote guidance. For module failures that need on-site maintenance, the modular design supports rapid replacement, with an average maintenance time controlled within 30 minutes, avoiding long-term shutdown of the energy storage system.

5.3 After-Sales Service Guarantee

We provide a standard 5-year warranty service for the whole machine and 10-year warranty for core power modules. During the warranty period, non-human damaged parts and equipment failures are provided with free replacement and maintenance services. We have a professional North American local after-sales service team, providing 7×24-hour remote technical support and on-site door-to-door service. Meanwhile, we provide long-term spare parts supply support and regular free equipment operation inspection services to ensure the long-term stable and reliable operation of user equipment.
